Protection Relays

Electrical Protection Relays

After many years of design, research, build and support, we offer a comprehensive range of  individual control relays, widely used in mining and general industry. Suitable for hazardous environments and providing ultimate personal protection, our relays are  compliant to latest standards, including AS/NZS4871. Readily available and also able to be custom  supplied, when operating conditions demand unique specifications.

Earth Leakage

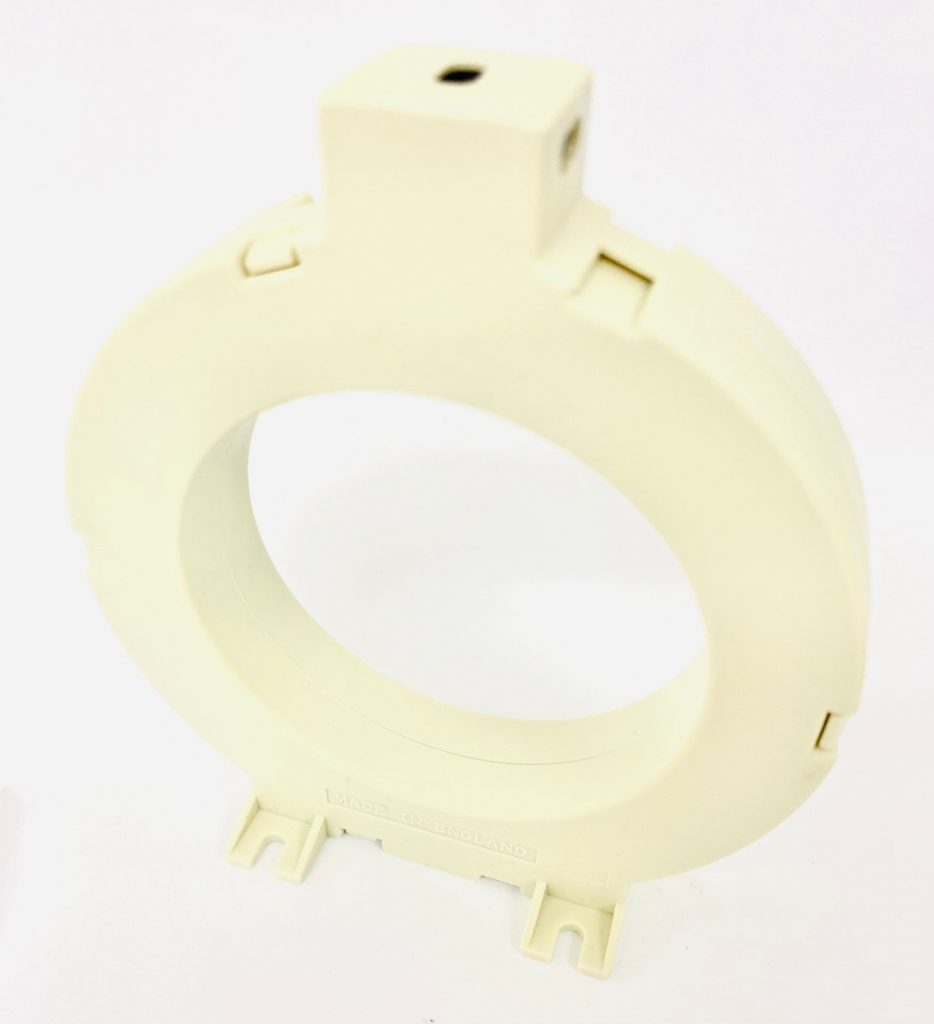

El1

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

El3

Earth Leakage Relay el3, is a compact din-rail mounted unit designed to detect Earth Fault Currents flowing in a power system. Compliant to latest Australian standards and utilising advanced microprocessor technology, el3 provides protection for VVVF drives.

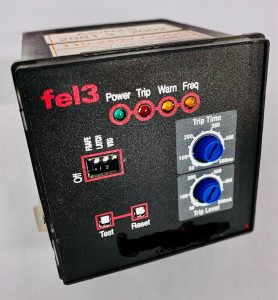

FEL3

Earth Leakage Relay fel3, is a compact fascia mounted unit designed to detect Earth Fault Currents flowing in a power system. Compliant to latest Australian standards and utilising advanced microprocessor technology, el3 provides protection for VVVF drives.

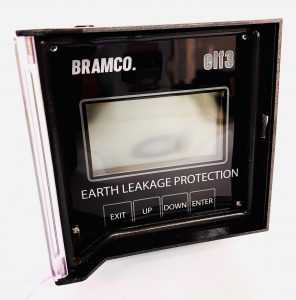

ELF3

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

Earth Continuity

iC

Earth Continuity Relay i-C, is an advanced, compact din-rail mounted unit designed to monitor the continuity of the Earth Circuit in a supply cable by grounding the pilot core via a diode, polarised positive to earth.

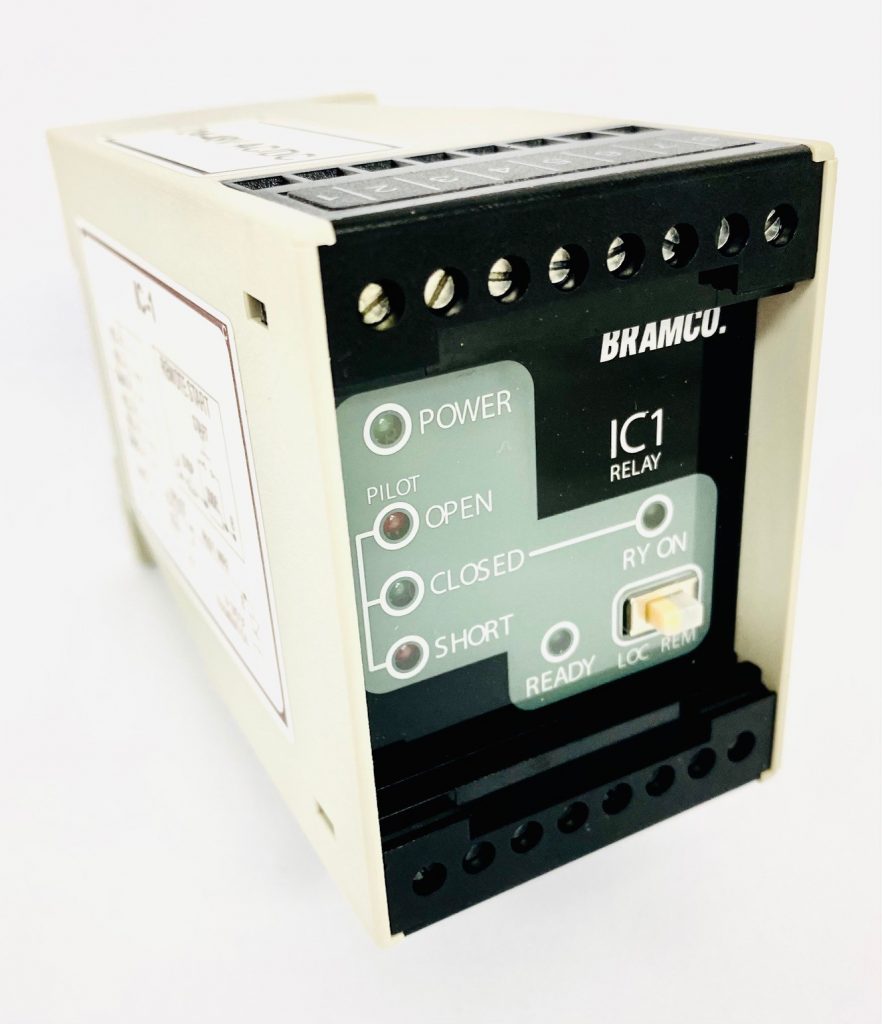

iC1

Combined control for Earth Continuity and Pilot Control, iC1 is an cost effective, advanced, din-rail compact unit designed to monitor the continuity of the Pilot Earth Circuit in a supply cable by grounding the pilot core via a diode. Local/Remote start operation is selectable. Compliant to latest Australian standards, iC1 utilises advanced microprocessor technology.

iC2

Providing combined control for Earth Continuity and Pilot Control, iC2 is an advanced, compact unit designed to monitor the continuity of the Pilot Earth Circuit in a supply cable by grounding the pilot core via a diode. This device is particularly suitable for operation on high voltage long distance supply cables.

Pilot Control

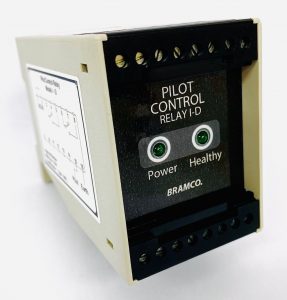

iD

Pilot Control Relay i-D is an advanced, compact din-rail mounted unit designed to monitor the continuity of the Earth Circuit in a supply cable by grounding the pilot core via a diode, polarized positive to earth, and to allow remote start/stop operation by momentarily shorting a 100 Ohm resistor in the pilot circuit and opening the pilot with a stop button to open the relay.

iC1

Combined control for Earth Continuity and Pilot Control, iC1 is an cost effective, advanced, din-rail compact unit designed to monitor the continuity of the Pilot Earth Circuit in a supply cable by grounding the pilot core via a diode. Local/Remote start operation is selectable. Compliant to latest Australian standards, iC1 utilises advanced microprocessor technology.

Neutral Earth

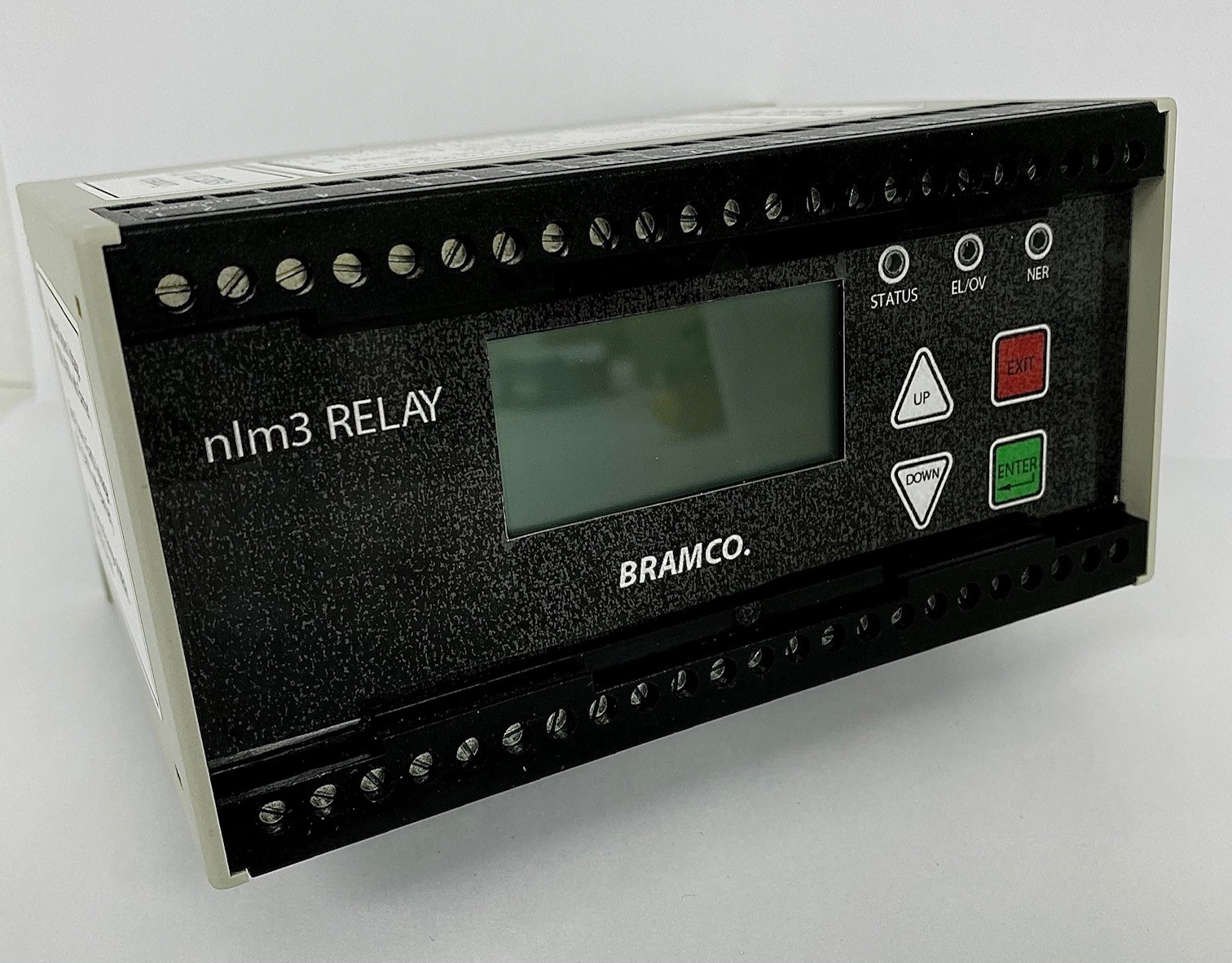

NLM3

nlm3 is a multi adjustable, advanced, din-rail compact unit designed to provide neutral Link monitoring. Compliant with latest Australian standards, nlm3 is a NER integrity protection device designed to continuously monitor the current limitation system on the secondary star point to earth connection of a supply transformer. nlm3 monitors the NER Resistance integrity, excess phase voltage rise, neutral earth leakage current, with the ability to adjust trip times for protection coordination.

Pump Control

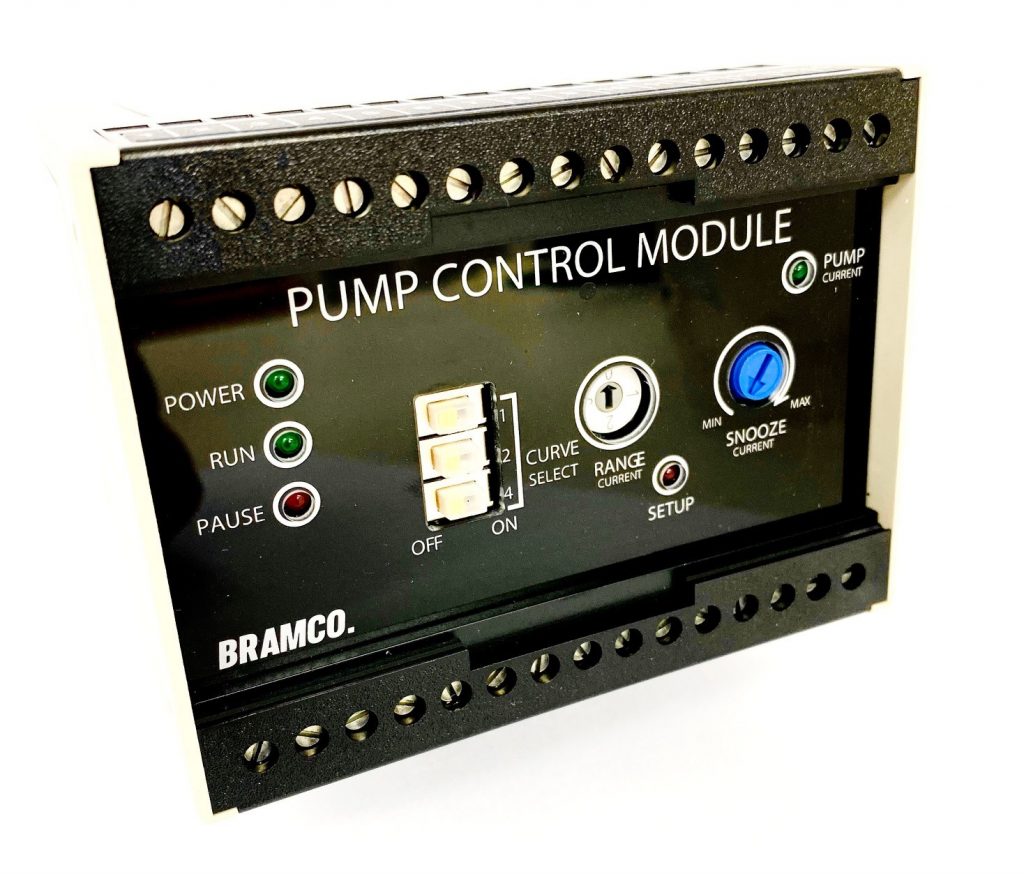

PCM

Pump Control Module pcm is an advanced, compact unit designed to provide submersible pump control. It monitors the current used by the pump and differentiates between load and no load currents. Two modes of operation apply. Manual mode will only switch the pump off and wait for manual switch intervention for starting the pump. Automatic mode will do full control of the pump operation by switching the pump on and off based on the level switch inputs and selected pause timer.

PCM+

Pump Control Module pcm is an advanced, compact unit designed to provide submersible pump control. It monitors the current used by the pump and differentiates between load and no load currents. Two modes of operation apply. Manual mode will only switch the pump off and wait for manual switch intervention for starting the pump. Automatic mode will do full control of the pump operation by switching the pump on and off based on the level switch inputs and selected pause timer.

Earth Fault Lockout

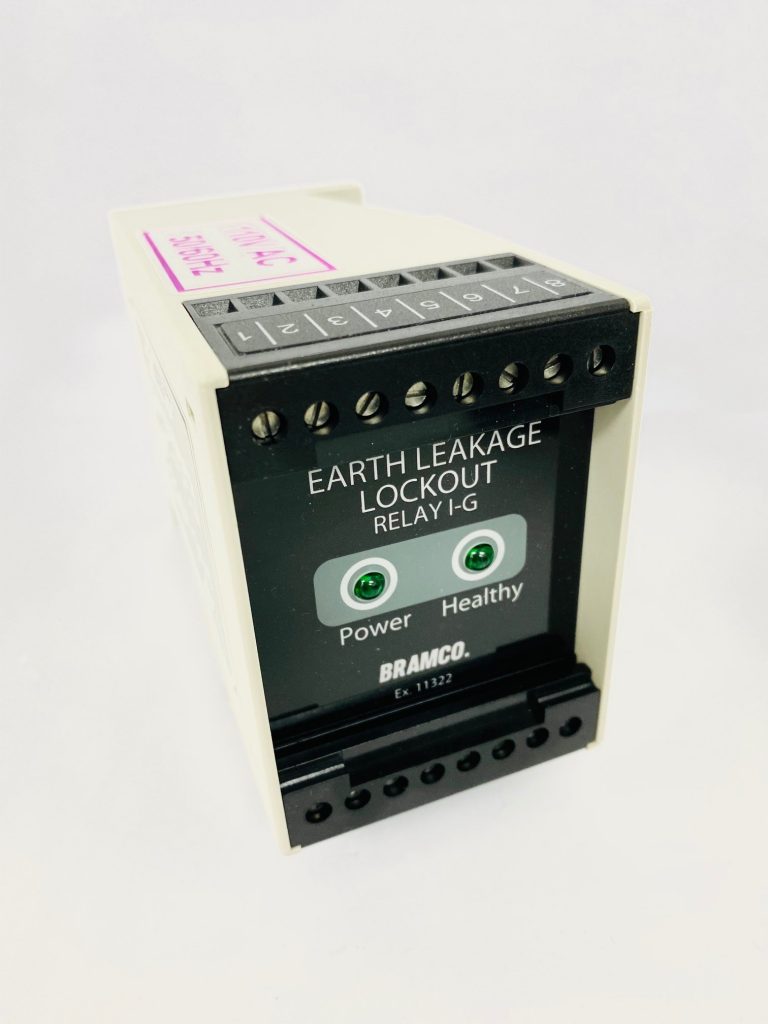

iG

Earth Leakage Lockout Relay i-G, is an advanced, compact din-rail mounted unit designed to detect Earth Faults on conductors in an outgoing circuit of an electrical system and to prevent the closure of the electrical supply to the de-energised circuit.

Phase Rotation

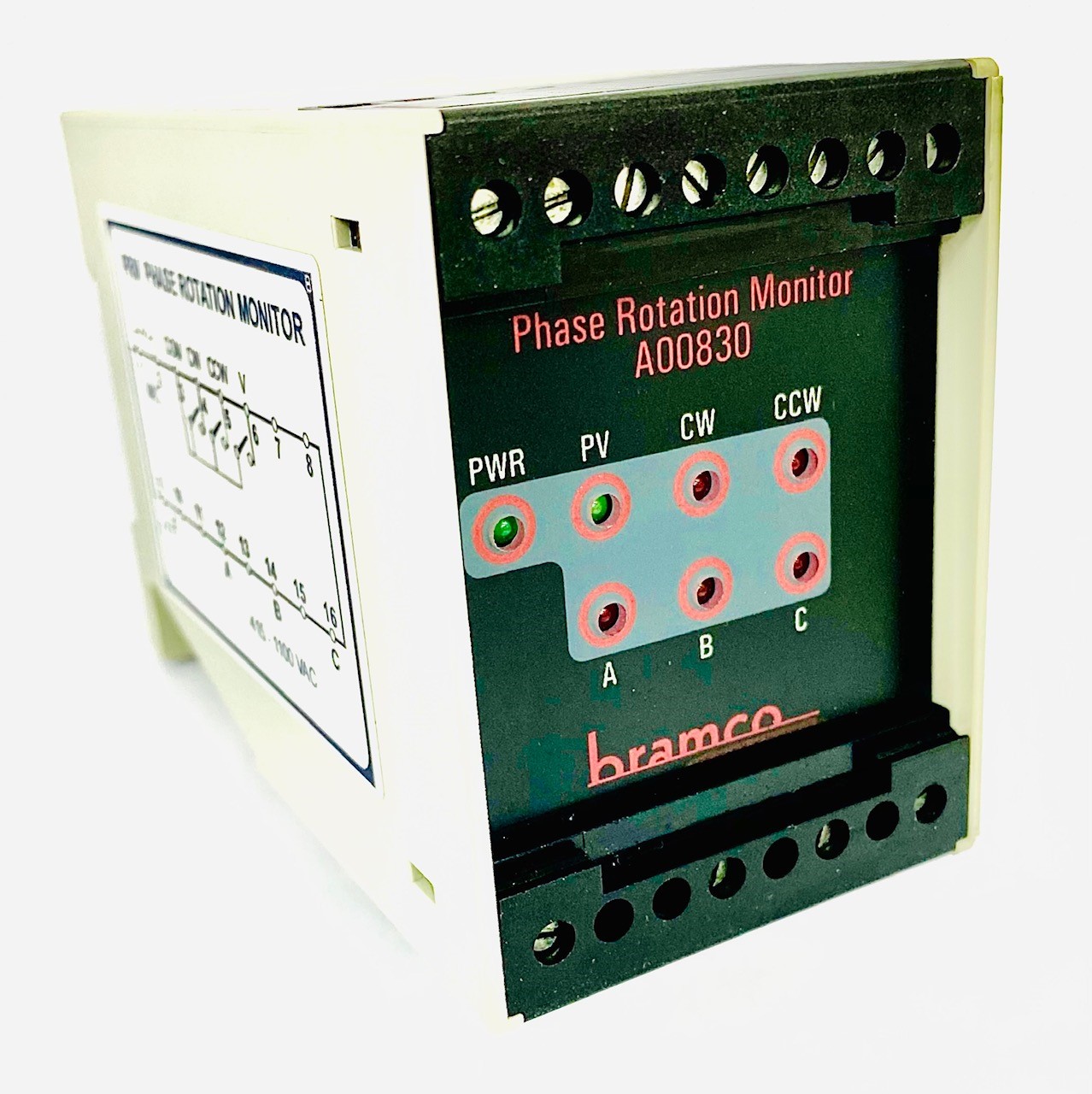

PRM

Phase Rotation/Loss Monitor Relay prm, is an advanced, compact unit designed to provide control and monitoring for phase rotation, phase loss of a 3 phase circuit. Suitable for Neutral referred circuits.

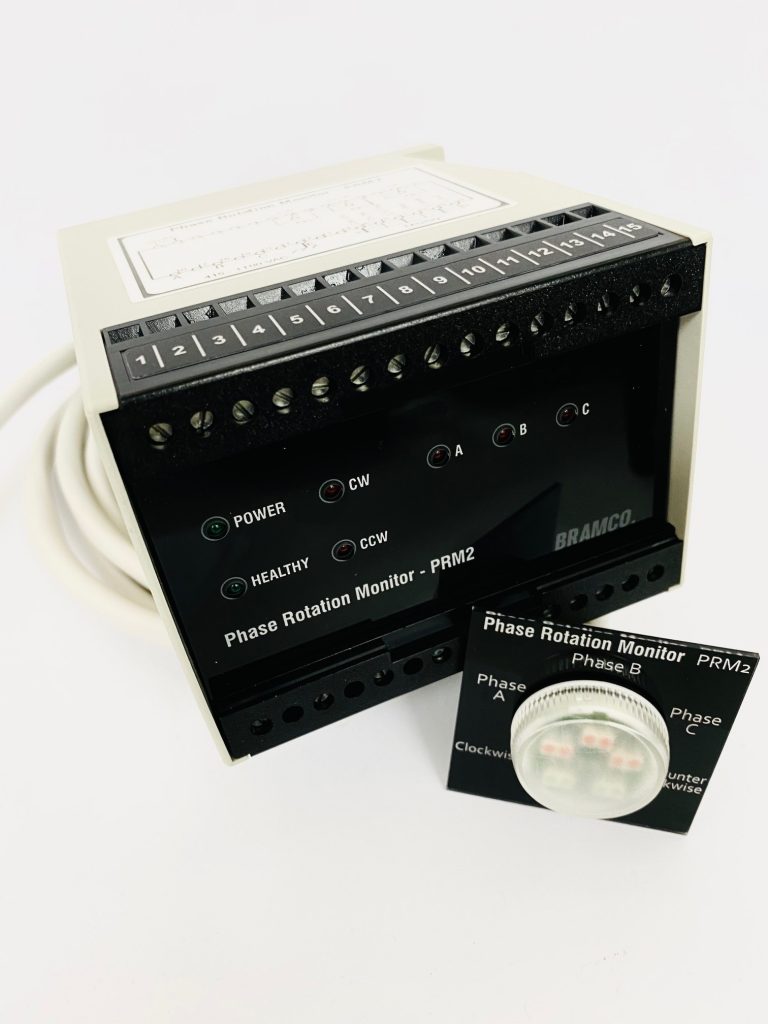

PRM+

Phase Rotation/Loss Monitor Relay prm2, is an advanced, compact unit with a remote display, that is designed to provide control and monitoring of phase rotation, phase loss of a 3 phase circuit. Suitable for Neutral referred circuits.

Multi Function Protection Relays

After many years of design, research, build and support, we offer a comprehensive range of multi function control relays, combining a number of protection features in one unit. Widely used in mining and general industry. And suitable for hazardous environments and providing  ultimate personal protection, our relays are compliant to latest standards, including AS/NZS4871.  Readily available and also able to be custom supplied, when operating conditions demand unique  specifications.

Earth Leakage + Earth Continuity + Pilot Control

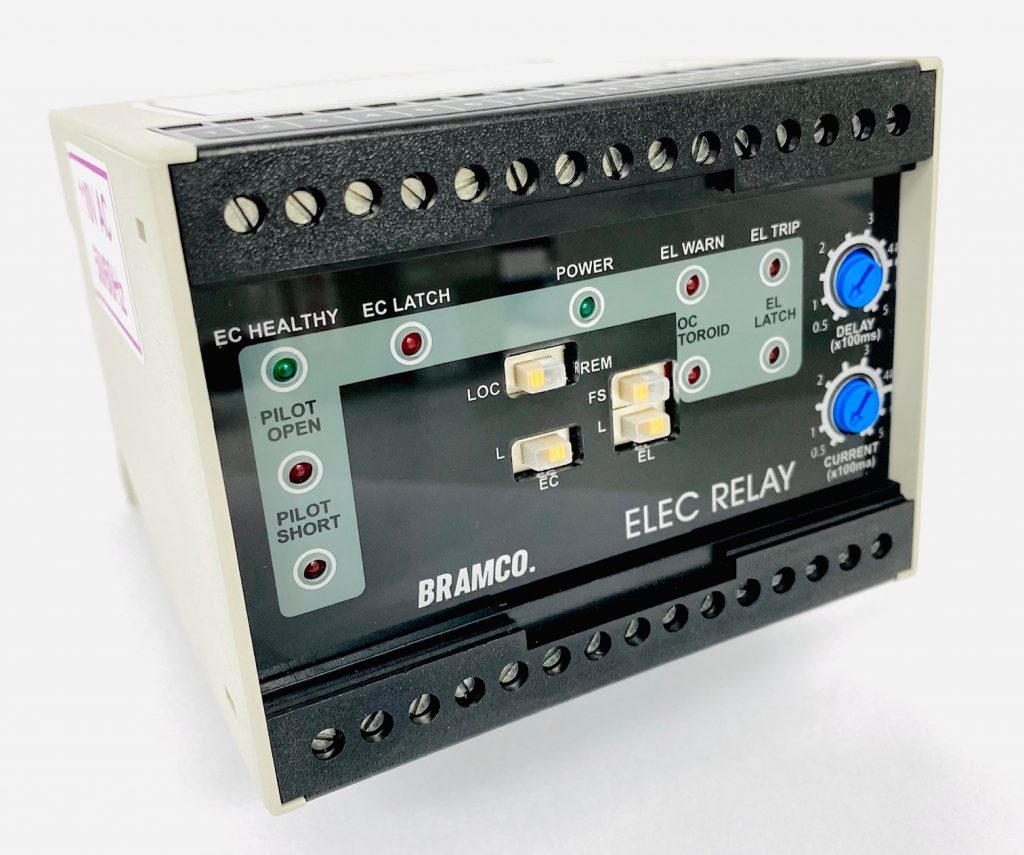

Elec

Combined control Earth Leakage, Earth Continuity and Pilot Control, elec is a compact din-rail mounted unit designed to detect and protect both Earth Fault Currents flowing in a power system and monitoring of the Earth Circuit in a supply cable by grounding the pilot core via a diode, polarised positive to earth.

Neutral Earth + Earth Leakage

NLM3

nlm3 is a multi adjustable, advanced, din-rail compact unit designed to provide neutral Link monitoring. Compliant with latest Australian standards, nlm3 is a NER integrity protection device designed to continuously monitor the current limitation system on the secondary star point to earth connection of a supply transformer. nlm3 monitors the NER Resistance integrity, excess phase voltage rise, neutral earth leakage current, with the ability to adjust trip times for protection coordination.

Earth Fault Lockout + frozen contactor

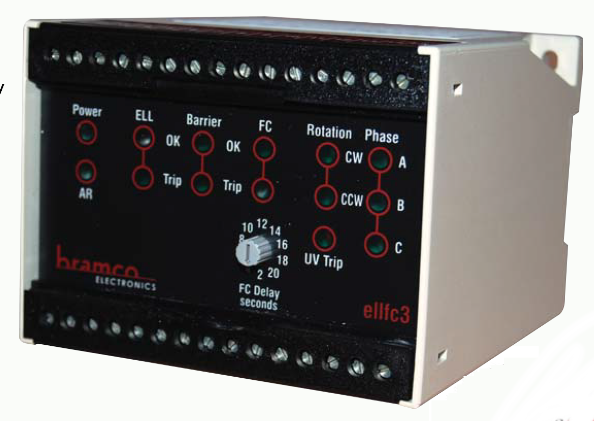

ELLFC3

ellfc3, is a multi adjustable, advanced, din-rail compact unit designed to monitor both Earth Leakage Lockout, Frozen contactor and under voltage, phase loss and phase rotation.  Compliant to latest Australian standards, ellfc3 utilises advanced microprocessor technology and suits underground environments.

Master module combining all functions in one unit

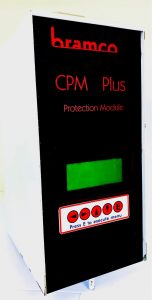

CPM3

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
